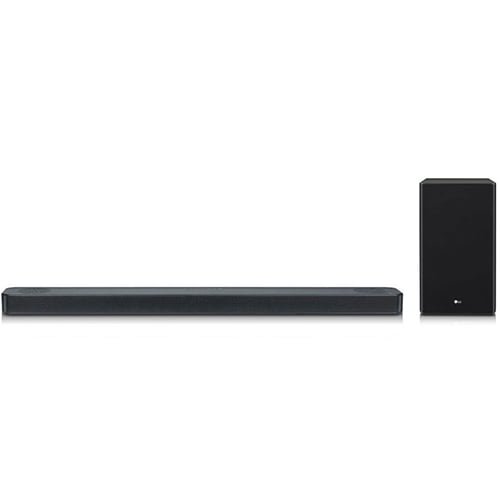

LG SL8YG 3.1.2 Channel 440W Sound Bar with Meridian Technology & Dolby Atmos

LG SL8YG detailed description

Meridian Technology.
LG SL8YG 3.1.2Ch Sound Bar comes with Meridian digital sound processing technology. What Meridian does is that it enhances the sound to a level that is easier for the ear to pick-up while expanding the 2 Channel to 3 Channel with no distortion whatsoever.

High-Res Audio.
LG SL8YG 3.1.2Ch Sound Bar has High-Resolution Audio that transmits sound at 96kHz sampling rates and 24bit depth. This ensures that you get an accurate high-quality sound that is good to listen to.

4K HDR.
With 4K content becoming mainstream, LG SL8YG 3.1.2Ch Sound Bar comes with 4K HDR and Dolby Vision video support. This allows LG SL8YG 3.1.2Ch Sound Bar to play a quality sound that goes hand-in-hand with the high-quality content without any drop in quality.

Features.

PHYSICAL.

• Size (W x H x D) mm – Main (w/ foot) mm: 1060 x 57 x 119
• Size (W x H x D) mm – Main (w/ foot) mm – Matching TV size (’18 New Designed LG TV): 49 inch ↑
• Size (W x H x D) mm – Subwoofer: 221.0 x 390.0 x 312.8
• Material – Mainset – Front: Metal Grille
• Material – Mainset – Top / Bottom: Mold / Mold
• Material – Subwoofer – Front: Jersey
• Material – Subwoofer – Body: Wood
• Net Weight (Kg) – Main: 4.4Kg
• Net Weight (Kg) – Subwoofer: 7.8Kg

CHANNEL/OUTPUT POWER.

• Channel: 3.1.2ch
• Output Power (THD 10%) – Total: 440W
• Output Power (THD 10%) – Front: 50W*2
• Output Power (THD 10%) – Center: 40W
• Output Power (THD 10%) – Surround: No
• Output Power (THD 10%) – Top: 40W*2
• Output Power (THD 10%) – Subwoofer: 220W (Wireless)
• Audio DAC – 24bit/192kHz: No
• Audio DAC – 24bit/96kHz: Yes

SPEAKER.

• Main – SPL: 82dB
• Main – System: Closed
• Main – Tweeter Unit – Front Only: 20mm Silk Dome
• Main – Woofer Unit: 40 x 100mm
• Main – Impedance: 4ohm
• Main – Magnetic Shielding: non-Shield
• Top – SPL: 83dB
• Top – System: Closed
• Top – Woofer Unit: 2.5″
• Top – Impedance: 4ohm
• Top – Magnetic Shielding: non-Shield
• Subwoofer – SPL: 85dB
• Subwoofer – System: Bass Reflex
• Subwoofer – Woofer Unit: 7″ inch
• Subwoofer – Impedance: 3 ohms
• Subwoofer – Magnetic Shielding: non-Shield

NETWORK.

• WiFi Band Width – 2.4G / 5G: Yes

CONNECTIVITY.

• Optical: Yes (1)
• HDMI 2.0 (HDCP 2.2): 4K pass through – In / Out: Yes (1) / Yes (1)
• USB: Yes
• Bluetooth: 4.2
• Bluetooth Codec (SBC / AAC): Yes / No
• WiFi: Yes

INFORMATION DISPLAY.

• Display Type: LCD (5 Char.)

SOUND MODE.

• Hi-Res Audio – Sampling – 24bit/192kHz: No
• Hi-Res Audio – Sampling – 24bit/96kHz: Yes
• Hi-Res Audio – Upbit/upsampling to – 24bit/192kHz: No
• Hi-Res Audio – Upbit/upsampling to – 24bit/96kHz: Yes
• Google Multi-Zone- Group Play Mode (one source –> multi-speaker): Yes
• Sound Effect – ASC (Adaptive Sound Control): Yes
• Sound Effect – Standard (Meridian: TBD): Yes
• Sound Effect – Music: Yes
• Sound Effect – Bass Blast / Bass Blast +: Yes
• Sound Effect – Movie (TBD: Dolby Surround): Yes
• Sound Effect – Dolby ATMOS: Yes
• Sound Effect – DTS:X: Yes
• Tone control – User EQ (RCU / App): Yes / Yes
• Night Time – On/Off (RCU / App): No / Yes
• Dynamic Range Control – On/Off (RCU / App): Yes / No
• Auto Volume Leveler – On/Off (RCU / App): No / Yes

CONVENIENCE.

• Smart Phone & Tablet Remote App – iOS / Android OS: Yes/Yes
• Smart Phone File Playback: Yes
• EZ setup (BLE): Yes
• Works with the Google Assistant – Controller: Yes
• NSU (Network Software Update): Yes
• Control with your TV Remote – Vol +, -, Mute: Yes
• Control with your TV Remote – Optical: Yes
• A/V Sync – 0~300ms (RCU / App): No / Yes
• SIMPLINK: Yes
• Audio Return Channel (ARC): Yes
• Woofer Level – -15~+6 (Step): Yes
• Channel Level – -6~+6 (Step) – Top / Center / Side / Surround: Yes / Yes / No / Yes
• Mute: Yes
• Auto Dimmer: Yes
• Sleep Timer – (RCU / App): No / Yes
• USB Host: Yes
• Wireless Rear Speaker Ready – 1:1 Rx module Type (Wireless Kit for rear): Yes

AUDIO FORMAT.

• LPCM: Yes
• Dolby Atmos / Virtual Height: Yes / No
• Dolby TrueHD: Yes
• Dolby Digital Plus: Yes
• Dolby Digital: Yes
• DTS Digital Surround: Yes
• DTS-HD Master Audio: Yes
• DTS-HD High Resolution: Yes
• DTS X: Yes
• AAC / AAC+: Yes

FILE FORMAT.

• FLAC – Up to 192kHz -C4A / USB: Yes / No
• OGG – Up to 48kHz – C4A / USB: Yes / Yes
• WAV – C4A / USB: Yes / No
• MP3 – C4A / USB: Yes / Yes
• WMA – C4A / USB: No / No
• AAC – C4A / USB: Yes / Yes

AUDIO STREAMING SERVICE.

• Chromecast: Yes

POWER CONSUMPTION.

• Main – Type – Adaptor: 25V, 2A
• Main – Power Off Consumption: 0.5W ↓
• Main – Power Consumption: 39.4W
• Subwoofer – Type – SMPS: 100~240V, 50/60Hz
• Subwoofer – Power Off Consumption: 0.5W ↓
• Subwoofer – Power Consumption: 36W
• Subwoofer – Wireless Frequency: 5.8GHz
